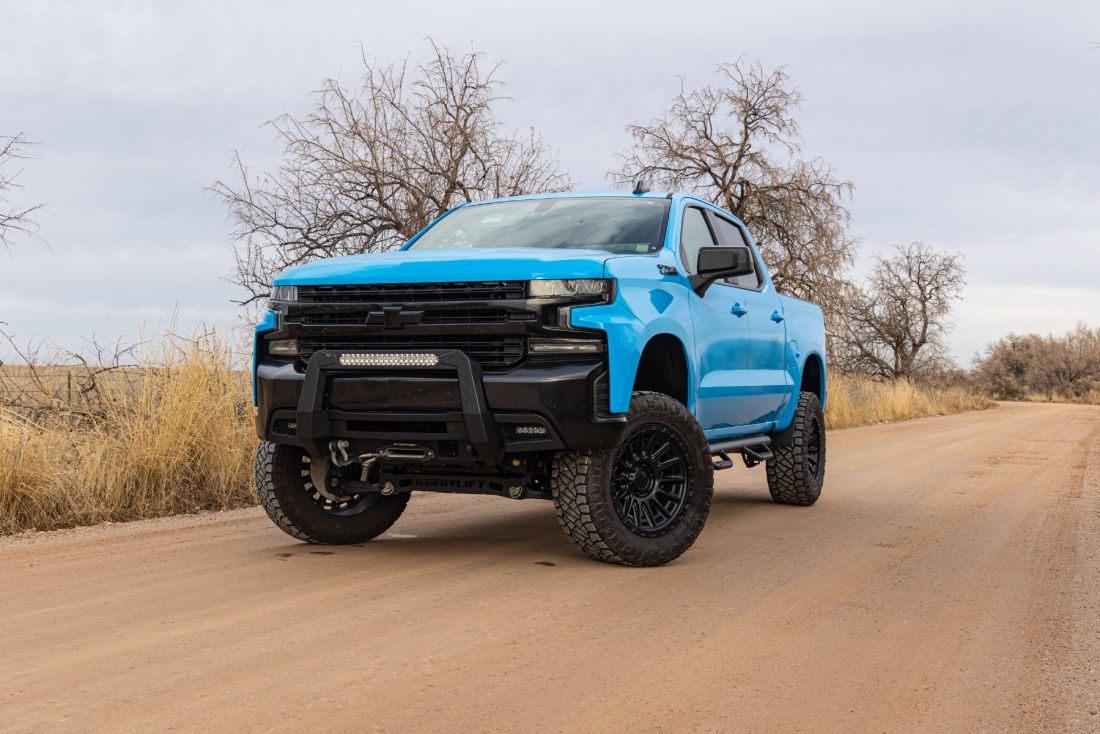

4” (4" + 2") Suspension Lift - 22+ GM 1500 ZR2/AT4X

Take Your AT4X/ZR2 to the Next Level!

If you demand a truck that conquers tough terrain without sacrificing ride quality, we have the solution for you. Our all-new Big Lift Kits are purpose-built for the 2022-current Chevy Silverado 1500 ZR2 and GMC Sierra 1500 AT4X, delivering the lift you need for increased clearance and superior off-road performance.

Why Choose ReadyLIFT?

We don’t just build lift kits—we engineer them for durability, performance, and factory-like ride quality. While others cut corners, ReadyLIFT remains committed to precision engineering, premium materials, and total customer satisfaction. With our lift kits, you get more than just added height—you get peace of mind knowing your truck is equipped to handle anything.

Proven Performance, Ultimate Strength

Building on our top-selling designs for the AT4 and Trail Boss, our engineers have adapted this proven technology to the AT4X and ZR2. Say goodbye to squeaks, rattles, and vibrations—these lift kits ensure a smooth, controlled ride across any terrain.

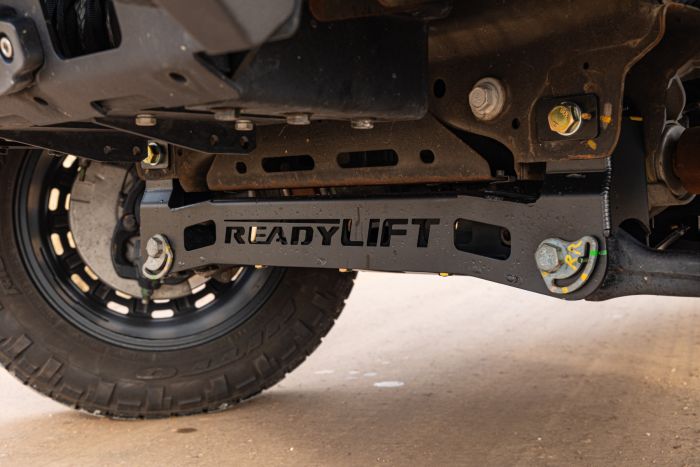

• Unmatched Strength: Heavy-duty boxed steel front and rear crossmembers and a full-width 3/16" front skid plate offer maximum protection and durability.

• Precision Engineering: 1/4-inch boxed plate steel differential drop brackets with double gussets and a boxed center rib prevent front differential torsional twisting, ensuring long-term reliability.

Optimized Suspension for Bigger Wheels & Tires

Our Big Lift Kits feature specially engineered angled and offset top-mount strut extensions to maintain proper alignment, reducing wear and maximizing shock performance. The lower strut pre-load spacer adds a slight spring rate increase, improving handling and stability with larger wheels and tires.

To lift the rear, we include fabricated steel rear blocks with integrated bump stop landings, plus rear shock extensions to retain factory shock performance and ride comfort.

Built for Adventure, Engineered for Excellence

With thousands of hours of research and development behind them, these lift kits represent the pinnacle of performance for 2022-2024 GM 1500 AT4X/ZR2 trucks. Whether you're hitting the trails or cruising the streets, ReadyLIFT delivers the ultimate combination of lift, strength, and reliability.

Upgrade your truck today with the best lift kits on the market—because your AT4X/ZR2 deserves nothing less.

Features:

• 4” (4” + 2”) kit yields 6” of total lift with the factory 2” lift
• Delivers clearance for increased aftermarket tire sizes - up to 35x12.50 on 6-inch kit on 9" wide wheels with 0 offsets with no trimming -18 offset will require minor trimming.
• The proprietary lower strut clamshell design maintains factory geometry and retains the use of the factory strut.
• 3/16-inch-thick steel plate cross members and skid plate.
• Anti-torsion boxed and gusseted plate steel differential drop brackets.
• Includes ReadyGuard Powertrain Warranty.
• Max tire with no trimming: 20x9 0 offset - 35x12.50 tire.
• Max with trimming: 20x10 -18 offset - 35x12.50 or 325/60R20

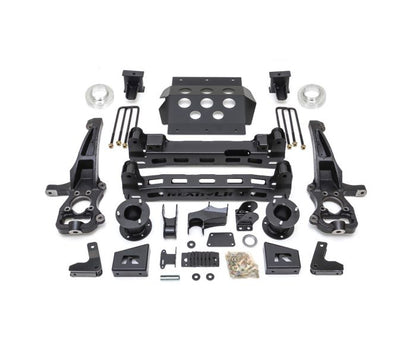

Components:

• Includes: Lift spindles & strut extensions
• Includes: Crossmembers
• Includes: Rear shock extensions
• Includes: Sway bar drop spacers
• Includes: Differential drop bracket
• Includes: Skid plate
• Includes: Bump stop extensions
• Includes: Rear blocks & U-bolts

NOTE: This kit will not fit late model 2024 or 2025 applications that have round U-bolts. Using this U-bolt kit will allow this kit to fit 2025 applications.
